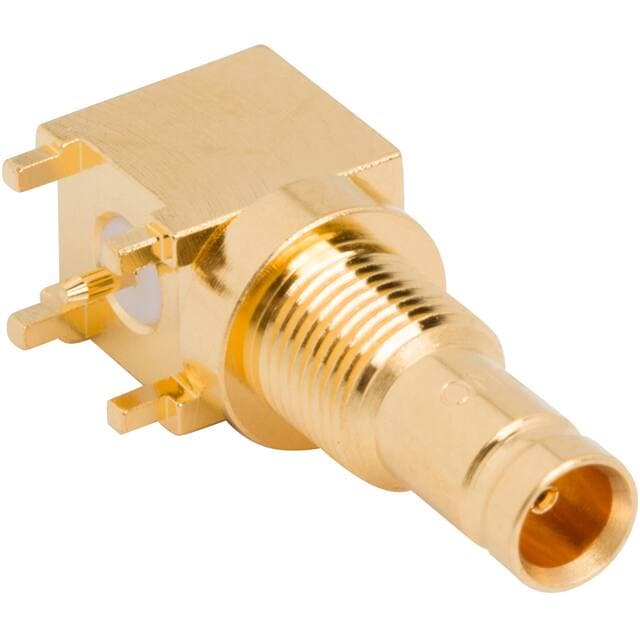

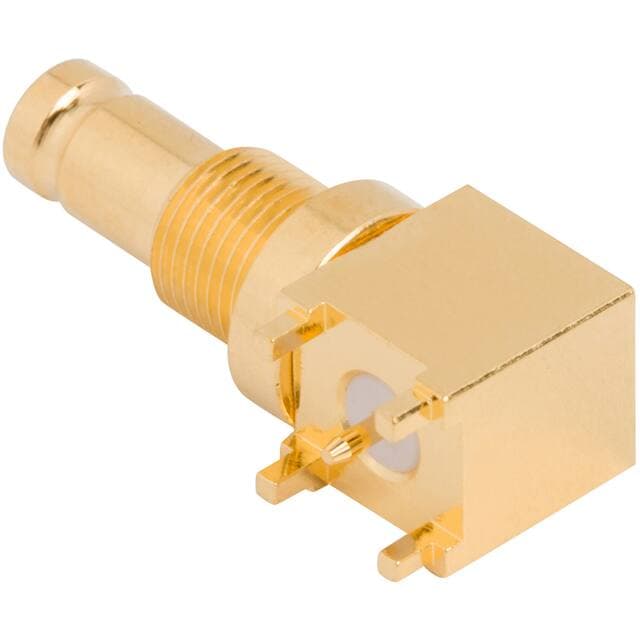

Representative package visual — not an exact-product photographProduct referenceVendor-delivered DigiKey product/package image1 of 2

Exact MPN21 sourced attributes1 source document

Amphenol RF · exact orderable part

102-909-07

Name: 102-909-07
Brand: Amphenol RF

1.0/2.3 RIGHT ANGLE PCB JACK, TH

Original manufacturerCommercial terms confirmed per lot

ManufacturerAmphenol RF

Mounting typeunknown

PackingBulk

Technical parameters

Technical specifications

21 normalized values · 1 validated source

102-909-07 technical parameters
Parameter	Value
Base Product Number	102-909 [1]
Body Finish	Gold [1]
Body Material	Brass [1]
Center Contact Material	Brass [1]
Center Contact Plating	Gold [1]
Connector Style	1.0/2.3 [1]
Connector Type	Jack, Female Socket [1]
Contact Termination	Solder [1]
Dielectric Material	Polytetrafluoroethylene (PTFE) [1]
Fastening Type	Snap-On [1]
Frequency - Max	10 GHz [1]
Housing Color	Gold [1]
Impedance	50Ohm [1]
Mating Cycles	500 [1]
Mounting Feature	Bulkhead - Front Side Nut [1]
Mfr	Amphenol RF [1]
Mounting Type	Panel Mount, Through Hole, Right Angle [1]
Number of Ports	1 [1]
Operating Temperature	-40°C~155°C [1]
Product Status	Active [1]
Shield Termination	Solder [1]
