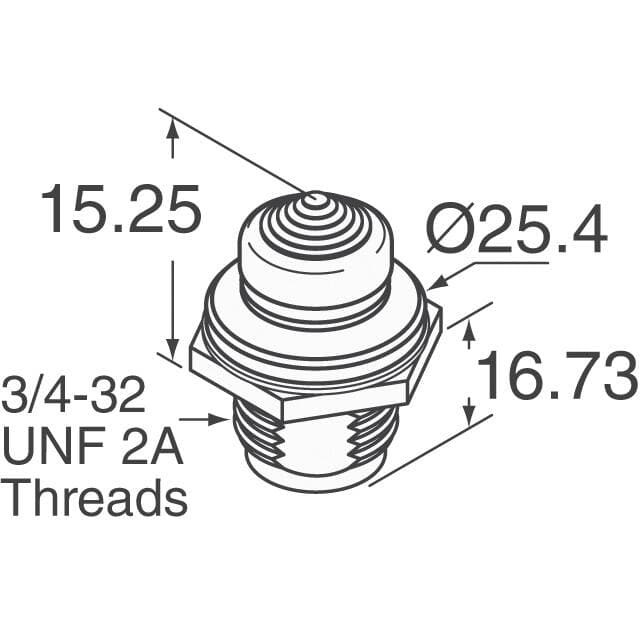

04J-AP-C01 representative package visual — not an exact-product photograph
Representative package visual — not an exact-product photographProduct referenceVendor-delivered DigiKey product/package image
Exact MPN20 sourced attributes1 source document

Grayhill Inc. · exact orderable part

04J-AP-C01

SWITCH NAVIG CONICAL 2A 115V

Actuator Type
Conical
Mechanical Life
100,000 Cycles
Ingress Protection
IP68 - Dust Tight, Waterproof
Base Product Number
04J-AP
Mfr
Grayhill Inc.
Contact Finish
Gold
Original manufacturerCommercial terms confirmed per lot
ManufacturerGrayhill Inc.
Mounting typeunknown
PackingBulk

Technical parameters

Technical specifications

20 normalized values · 1 validated source

Report a data issue
ParameterValue
Actuator TypeConical [1]
Mechanical Life100,000 Cycles [1]
Ingress ProtectionIP68 - Dust Tight, Waterproof [1]
Base Product Number04J-AP [1]
MfrGrayhill Inc. [1]
Contact FinishGold [1]
Operating Temperature-55°C~85°C [1]
Mounting TypePanel Mount [1]
Contact MaterialNickel [1]
OutputDigital (Mechanical Switch) [1]
Current Rating (Amps)2A (AC/DC) [1]
Product StatusActive [1]
Electrical Life100,000 Cycles [1]
Series04J [1]
Switch Function4-Way Directional, Center Select [1]
Termination StylePC Pin [1]
TypeNavigation Switch, 2 - Axis [1]
Operating Force454gf [1]
Voltage Rating - AC115 V [1]
Voltage Rating - DC28 V [1]
Specification references[1]Grayhill Inc. 04J-AP-C01 vendor product record ↗
